Go To Step
Use the "Go To Step" step to move from one step to another step in the Process Workflow.
You can go to another step in any direction, but typically the Go To Step step is used to loop steps, where the last step in a group loops back to the first step in the group. For more information on Groups, see: Add Groups
Add a Go To Step
To add a Go To Step step to a Process Workflow:
- Right-click on the name of the Workflow or the name of a Group or Step in the Process Workflow Navigation pane.
-
Select Add Step > Go To Step from the right-click menu.
This will add the step to the bottom of the Workflow Setup navigation tree, add the step to the Group, or add the step below the current Step, respectively.

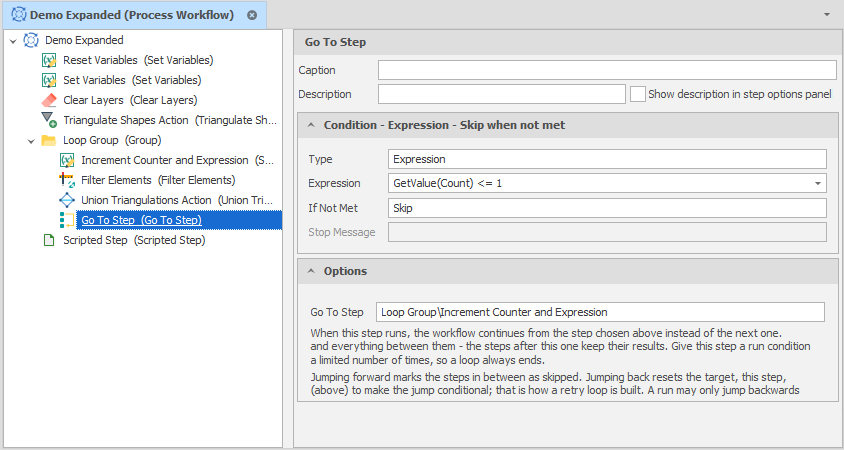

Go To Step Properties
Properties
Caption
(Optional) Enter a Caption. The Caption replaces the display text for a given step in the Workflow Runner.
Description
(Optional) Enter a description that summarises the action performed by the step.
When running a step, the description is shown together with a completion message.
This appears on the row and, if an error occurred, in the Error List.
This might describe the variables you have chosen to be prompted for.
Show description in step options panel
Select this option to show the Description in the Step Options dock panel (when this step is selected in the Workflow Runner panel).

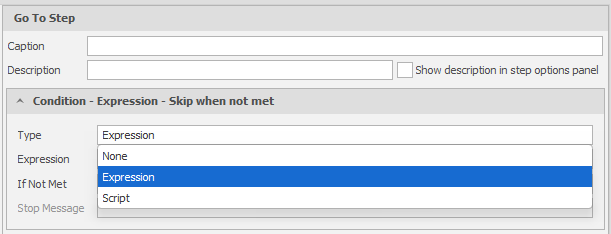

Condition -
Type
Select a (None, Expression, Script) Condition Type.

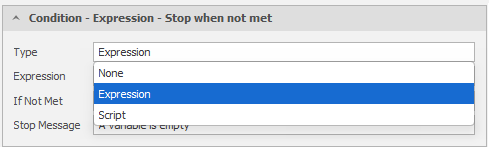

Condition - Expression - Stop/Skip when not met
When the Condition Type is Expression, click to use the drop-down to build a filter expression in the Expression Editor. Filter Expressions evaluate and return a Boolean (True or False) value.
If the expression returns a False value, the condition is NOT MET.
Condition - Script - Stop/Skip when not met
When the Condition Type is Script, click to use the drop-down to select a Script Method.
Stop Message
When the condition is NOT MET and you have chosen to Stop running the workflow, the message that is displayed to the user should indicate the reason why the workflow was stopped (based on the condition set).

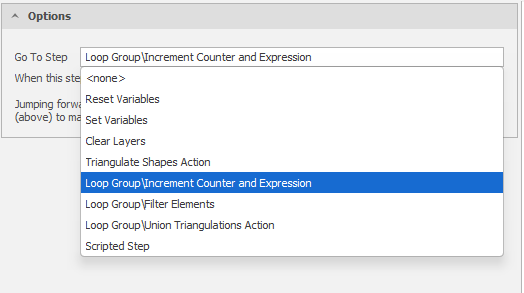

Options
Go To Step
Select the step to go to.
