Topography

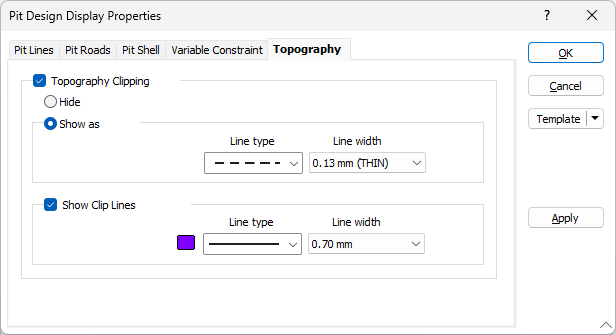

Where Topography Clipping has been enabled for the pit design on the Topography tab of the Setup form, the options on the Display Properties Topography tab are enabled. Use the options to configure the method to be used to generate topography for the pit design.
The current configuration reflects the settings from the Setup form. If you make changes to the settings in this tab, the Setup | Topography tab will be updated.
Topography Clipping
If you select the Topography Clipping option, generated pit lines that are above the defined topography will be clipped.
If you select Hide, clipped pit strings will be hidden from display.
If you select Show as, the clipped pit lines will be displayed using the Line type and Line width you select.
Show Clip Lines
If you have selected the Topography Clipping option, you can select whether to Show Clip Lines and choose the Line type and Line width for the display.
