Event

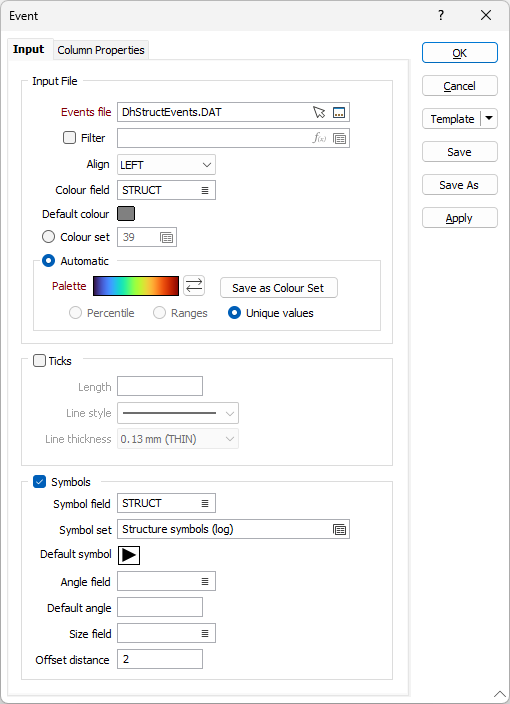

On the Input tab of the Event form, select the input data for the events that will be shown downhole:
Input
Event File
Double-click (or click on the Select icon) to select the name of the file that contains the data you want to display. You can also click the Pick from Vizex button to collapse the form and interactively select a layer containing the file to be inserted and return to the form.
Optionally, select or create a filter to limit the data that is processed.
If you select the Filter check box, you can select an existing filter or create one using the Expression Editor by clicking the icon.
A filter can be useful when you want to apply a restriction on a field other than the one being displayed, for example, to show the assays in a particular zone, or show the assays for specific holes.
Align
Select an alignment option. The event display can be aligned to the LEFT or RIGHT of the column.
Colour field
Specify the name of a field which contains the values that will be used to colour-code the display.
You can choose to select colour values directly from the Colour field without selecting a Colour set. In this case, the values in the Colour field must be valid RGB, Hex, or Integer colour definitions.
| Format | Example |
|---|---|
| R,G,B | 89,169,215 |
| HTML Hex | #59A9D7 |
| Hex | 0x59a9d7 |
| int | 5876183 |
Default colour
Double-click (F3) to select the colour that will be used when a Colour field or a Colour set is not defined - or when a value in the Colour field is either not valid or is not mapped in the Colour set.
Colour set
To map values in the Colour field to the colour values in a Colour set, double click (F3) to select the set that will be used to control the display colour. Right-click (F4) to create or edit a Colour set.
Automatic
Select Automatic to select a palette and automatically apply colour ranges to the data. The Save As Colour Set button provides the option to save the result as a colour set.
Note that the auto colour set controls are disabled when a Colour field is unspecified:
Choose a mode of calculation:
| Mode | Description |
|---|---|
| Percentile | The application will divide the data into ranges each containing the same number of values; the highest and lowest value in each bin will define the upper and lower values for each range. |
| Ranges | The data will be divided into equal ranges. |
| Unique values | A colour will be assigned to each unique value. |
Automatic colour settings will be applied by default when you:
-
Create a new drillhole log from a .dhdb file with display options that have a blank colour set value (as is the case with Vizex forms), or
-
Drag-and-drop a Vizex form that uses an automatic colour set.
Ticks
Select this option to display ticks rather than symbols. The Offset distance and the Size factor you specify are applied to the symbols, or to the ticks (when this check box is selected).
Length
Specify a tick length
Line style
Select a line style. A preview of each style is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.
Line thickness
Use the drop-down menu to select a (THIN, MEDIUM, THICK or other) line thickness.
Symbols
Select this option to display symbols rather than ticks. The Offset distance and the Size factor you specify are applied to the symbols, or to the ticks (when this check box is selected).
Symbol field
Specify the name of
Symbol set
Double click (F3) to select the set that will be used to determine the symbol that will be displayed. The symbol set maps symbols to text strings or numeric ranges. This determines a symbol for each value in the chosen (mapped)
Default Symbol
Double-click in the Default Symbol box to select the symbol to be used when a Symbol
Double-click the Symbol icon to choose a symbol. You can source symbols from any TrueType or OpenType font.
Angle field
Enter the name of the field containing symbol angle values (0-360°). A value of 0 will display the symbol in its natural orientation. A value of 90 will display the symbol rotated 90° in the clockwise direction.
Default angle
Enter the default angle, in degrees, that will be applied to symbols at points where there is no entry in the symbol angle field. The default is 0°.
Size field
Enter the name of the field containing the factor that will be used to control the symbol size. The default is 1.
Offset distance (symbols)
Specify an offset distance (in grid units) that will be used to display the symbols.
