Optimise

On the Wireframe tab, in the Manage group: Select Manage Types | Optimise to optimise a selected wireframe type.

If access to the geometric properties of a wireframe type is slow, the optimisation process will rebuild the topology, remove unused points, and compact the database for each wireframe type.

Select Type

In the Select Type form, double-click (or click on the ellipsis) to select the Type you want to optimise.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

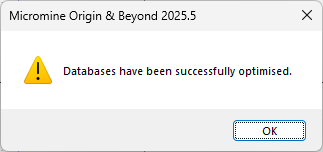

Click OK to begin the optimisation. If the process is successful, a "Databases have been successfully optimised” message is displayed:

If an error occurs, please contact Micromine Australia Pty Ltd Support and provide details of the error.
