This topic provides a summary of new features and enhancements related to String Editing and Display.

Offset Angled String Dynamic Preview

Support for a dynamic preview has been added to the Generate Offset Angled String tool on the Design tab, in the Editing group.

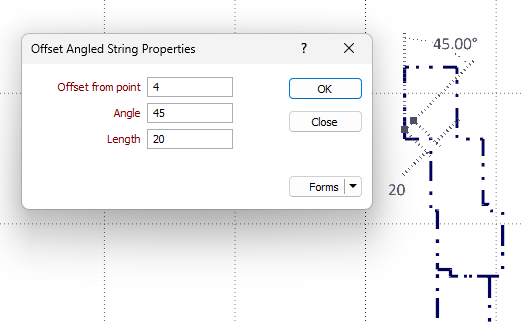

As values are entered in the form, a preview of the new string is dynamically updated in Vizex. You can make changes to the values until the required result is achieved.

As the preview is now dynamically updated, the Preview button was removed from the form.

For more information, see Generate Offset Angled String

CAD Cursor Vertical Exaggeration Grid Units

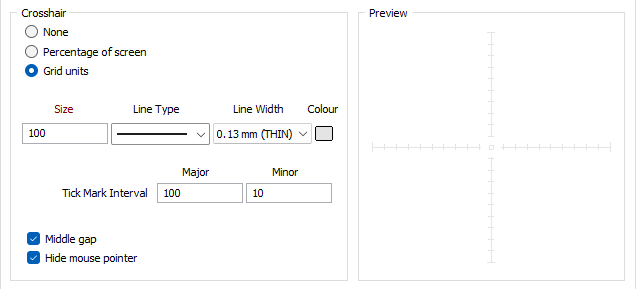

Support for Crosshair Grid Units mode while Vertical Exaggeration is active has been added to the CAD Cursor feature.

Previously, when vertical exaggeration or perspective mode were turned on, cursor shapes were not visible and the crosshair was only enabled when the mode was Percentage of screen.

Enabling the CAD cursor to function in Grid Units when Vertical Exaggeration is applied, means geologists can maintain accurate spatial measurements while still benefiting from the exaggerated vertical view; providing a more flexible interpretation workflow.
