Wireframes

Assign Wireframes (Block Model)

The Wireframe Assign (Block Model) tool on the Wireframe tab, in the Assign group (and the the Block Model tab, in the Assign group) has been improved with support for resizing the dialog and an Autofill the grid option on the Assign tab.

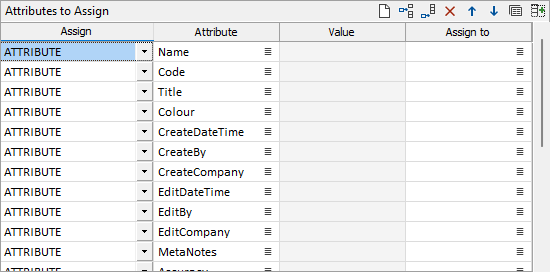

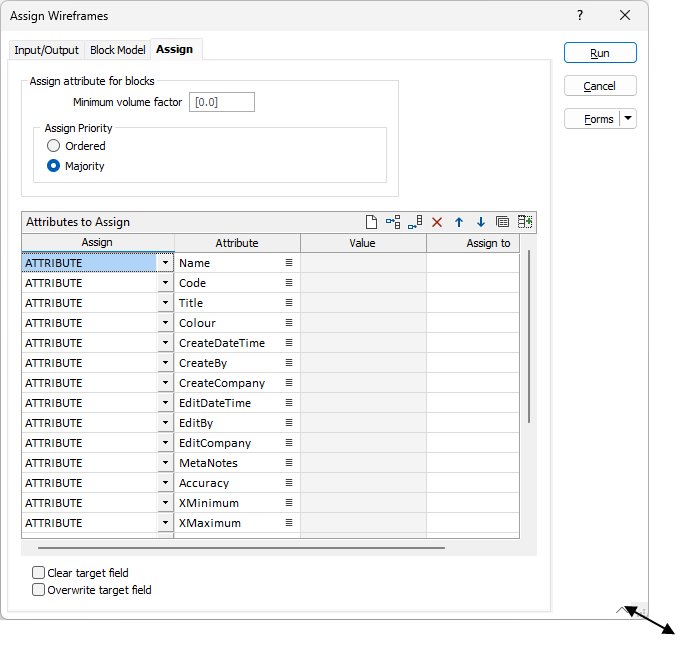

The Assign Wireframes form can now be resized to make room for the display of more details. Additionally, if you select the Autofill the grid button in the grid toolbar, Attributes will be automatically created from the input wireframe.

For more information, see Block Model.

Create Mining Blocks

On the Wireframe tab, in the Operations group, when you click Create Mining Blocks to create mining blocks suitable for mine scheduling, Mining Block Attribute and Wireframe Attribute selection has been improved.

In the Attributes group box, when you populate mining block attributes, an Autofill button can now be used to populate the grid with auto-generated hierarchical attributes:

Autofill will add Mining Block Attribute rows for any rows that are missing and will also fill out default values for any rows that are present but which have blank Output attribute names. The metadata from each String or Numeric input wireframe attribute is applied to each output wireframe attribute accordingly. This flows through to any auto-generated schedule attributes.

A warning is also issued if duplicate mining block attribute inputs are specified.

In the Attributes group box, when you populate pit solid wireframe attributes, an Autofill button can also be used to copy Input attribute names across to the Output column.

Preserve Pre-Vertex Attributes

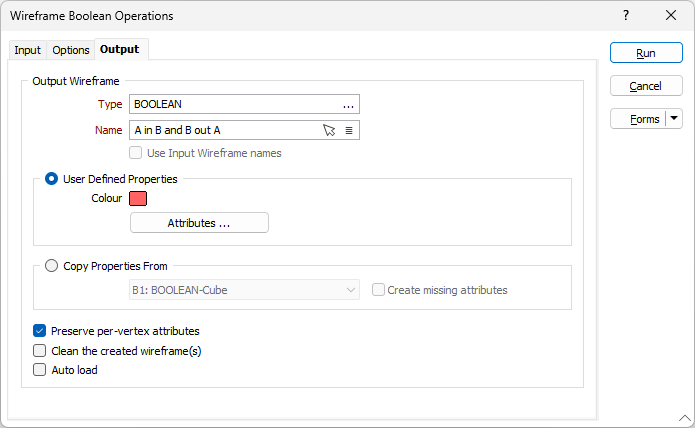

The Preserver per-vertex attributes option has been added to the Output tab of the Wireframe Bolean tool on the Wireframe tab, in the Boolean group.

Any operation which changes the Wireframe points (such as deleting, adding, modifying etc.) can result in the per-vertex attributes no longer synchronising with the updated wireframe points. If the new option is selected, the per-vertex attributes for the wireframe points updated by the Boolean operation will be retained.

For more information, see Boolean (form).
