Import Options

Use the Import Options page of the Block Model Export Wizard to choose how the exported model is imported and displayed.

Ignore Loading Filter

Select this check box to ignore the filter loaded as part of the properties of the layer (if any).

Import Exported Block Model

Select this check box to import the exported block model.

Copy Properties

Select this check box to copy the properties of the block model(s) as part of the import process.

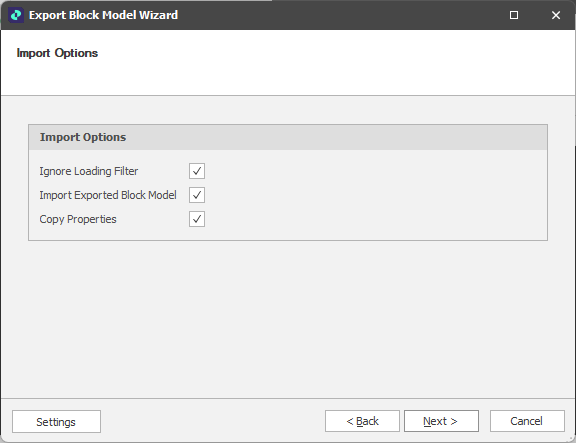

Block Model Export: Import Options

Back

Click Back to use the Field Options page of the Block Model Export Wizard to populate the exported block model with user-defined calculated fields. See: Field Options

Next

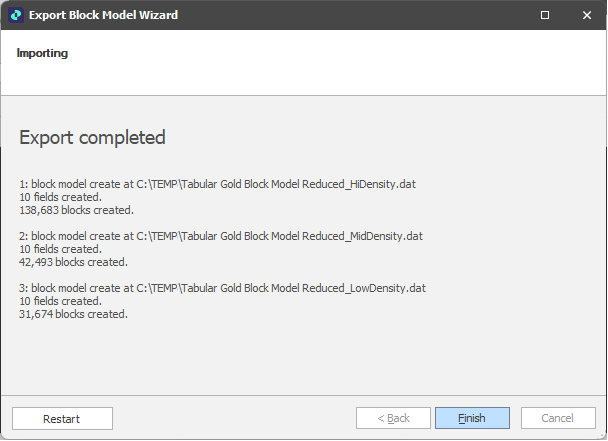

Click Next to begin the export and re-import (when selected as part of Import Options).

Restart

Click Restart (at the lower left of the Wizard window) to proceed with another export/import and return to the Filter Options page. From there you can adjust your export/import settings and re-export and re-import if needed.

Finish

Click Finish to close the Block Model Export Wizard.
