Geology Model

The Geology Model feature provides a quick, easy and efficient way to create a complete geological model based on chronology and fault interactions. Access to the tool is via the Implicit tab in the Lithology group.

In the Geology Model form, you can:

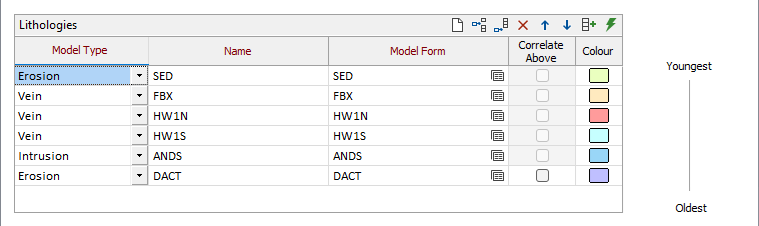

  • Order and populate your lithologies, including faults, from colour sets:

    The Lithology options in the Geology form

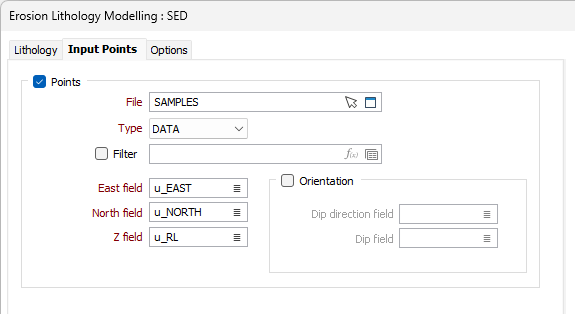

  • Define lithology, input points and other options via the model form for each model type. For example, the Erosion model type Model Form:

    The Faults options in the Geology form

    See Lithology Definitions for information on each model form.

  • And produce a full geological model as a result.
