Contact

On the Implicit tab, in the Lithology group: Click Contact to generate a wireframe representing the extents of lithology surface contacts or sheeted veins.

Input

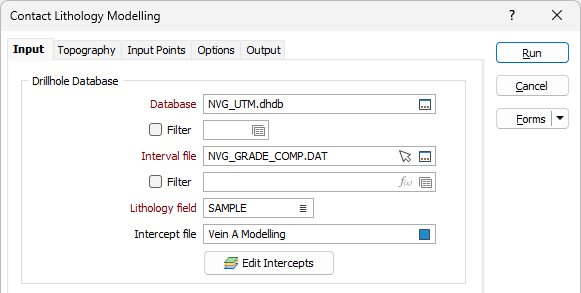

Drillhole Database

Double-click (F3) to select from a list of databases in the current project. Alternatively, you can right-click and choose Select Database . You can also Edit the properties of an existing database or create a New database.

Optionally, select or create a filter to limit the data that is processed.

If you select the Filter check box, you can select an existing filter or create one using the Expression Editor by clicking the icon.

Interval file

Double-click (F3) to select an Interval file that contains the grades you want to interpolate. You can also click the Pick from Vizex button to collapse the form and interactively select a layer containing the file to be inserted and return to the form. You can optionally apply a Filter to the records in the file.

Lithology field

Double-click (F3) to select the name of a Character field that contains the lithology codes you want to include or exclude from the interpolation.

Intercept file

Double click (F4) in the field or click the icon to select the vein intercepts file for the Lithology.

If you click the Edit Intercepts button below the field, the sub-form is closed and the Vein Intercepts tool is loaded with the selected file displayed. When the modelling form is closed, you can use the tool to view and/or modify the vein intercepts.

Lithology to Model

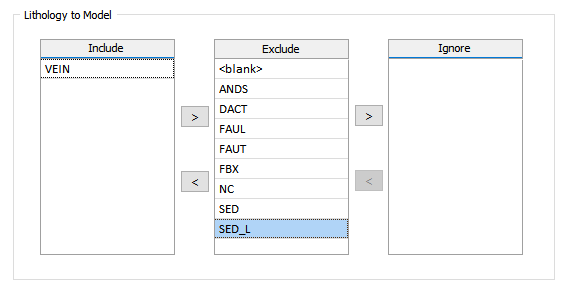

When you select a valid Lithology field, the Exclude grid is populated with a full list of Lithology codes. Use the arrows between the Include, Exclude and Ignore grids to select the codes you want to include, exclude and ignore.

The points for each of the Lithology codes in the Include and Exclude columns will be assigned a positive or negative value respectively. This value will be the distance from the closest 0 (boundary points).

For Included codes, the values will be positive. For Excluded codes, the values will be negative. Ignored codes are excluded altogether from the interpolation.

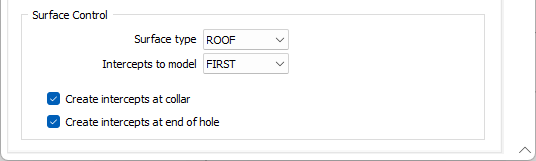

Surface Control

Surface type

Select a generation method that will be used to build the input surface/solid points:

ROOF	Construct a surface that touches the top contact of each intercept.
MIDDLE	Make the surface pass through the middle of each intercept.
FLOOR	Construct a surface that touches the bottom contact of each intercept.

Intercepts to model

Select which intercept to model where a drillhole contains more than one intercept:

FIRST	Ignore all except the first intercept.
LAST	Ignore all except the last intercept.
ALL	Model all intercepts. The function will attempt to construct a surface that bends around to touch all intercepts.

To constrain the model to your drillholes, you can choose to create intercepts at the collar and at the end of each hole.

Create intercepts at collar

When this check box is selected, if an INCLUDED interval begins at the collar, a contact point will be created at the collar.

Create intercepts at end of hole

When this check box is selected, if an INCLUDED interval ends at the end of the hole, a contact point will be created at the end of the hole.

Note: In this context, 'end of hole' refers to the end of the deepest logged interval, and not necessarily the total depth of the hole.

Creating intercepts converts an open, extrapolated boundary into a hard-pinned contact point wherever the modelled unit is logged right at the collar (or right at the base of logging). This process can noticeably change the modelled surface and caution should be taken when using the options.
