Bench

On the Mining | Pit Design (Dynamic) tab, in the Active Bench group: Set the active bench by selecting it from the Bench drop down.

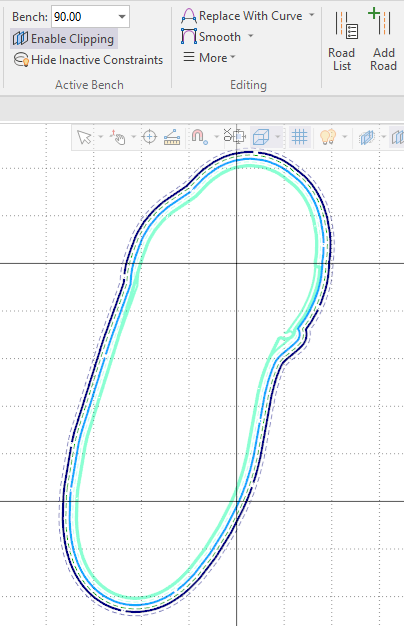

The selected bench will be set to active and affected by the Enable Clipping option. For example, the selected active bench is clipped here:

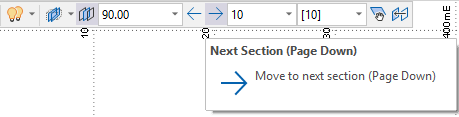

Additionally, setting the Active Bench will change the step distance so the Next Section and Previous Section buttons in the Vizex toolbar will navigate to the next or previous bench relative to the active bench.
