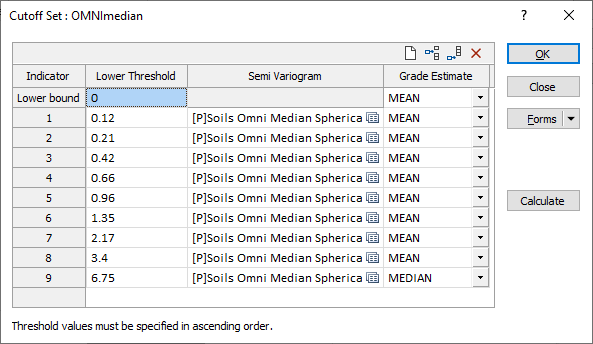

Cut-off Set

Cut-off bins (lower to higher threshold values) may be applied as model values for Multiple Indicator Kriging estimation and for Reporting.

For estimation:

1. Specify the parameters of the semi variogram model you want to apply for each bin in the Cut-off set form.

2. Specify the grade estimate method(s) to be used.



   Modelling Parameters

For Reporting:

• Cut-off bin (lower to higher threshold) values are generated when you select Multiple Indicator Kriging | Generate Cutoffs on the Geostatistics tab, in the Estimation group.

• In this case, the Semi Variogram and Grade Estimate columns are disabled:
